SDC

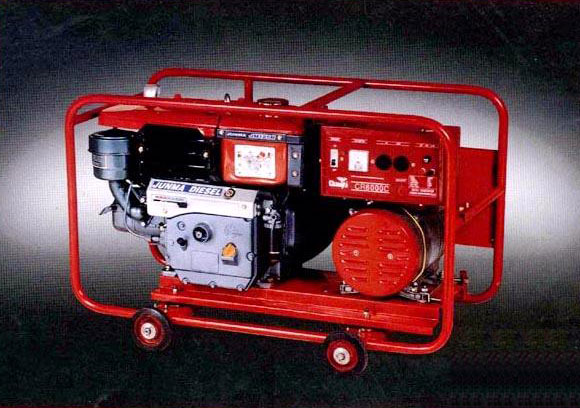

SDC系列三相交流发电电焊两用机
SDC系列发电电焊两用机适宜于内燃机配套组成移动或固定电源，适用于城镇、乡村、林区、建筑工地、小型船舶等作为照明、日用电器；电动工具以及电焊的电源。本产品可发电、电焊单独使用，也可以少量照明和电焊同时使用。
SDC series three-phase a.c generating and welding double us generators
Type SDC series Generting-Welding set is bestdriven by an internal combustion engine.They thus form a mobile or stationary power supplyunit which is suited to be used in towns,count-rysides,forests,construction sites or on boatsfor lighting,household appliances,power toolsand welding.
This machine can serve for either ge-nerating or electric welding individually,and forboth welding and a smallscaleillumination sim-ultaneously.
| 型号 Type |
三相 400V 50Hz /1500r/min cosφ=0.8 | |||||||
|---|---|---|---|---|---|---|---|---|
| 额定功率 Rated output |
额定电压 Rated Voltage (V) |
额定电流 Rated current(A) |
电焊空载电压 Welding voltage under noload(A) |
焊接电流 Welding current(A) |
暂载率 Continuous rate underload (%) |
电焊电流调节范围 Current adjustment range for welding(A) |
||
| KW | KVA | |||||||
| SDC-5 | 5 | 6.3 | 400 | 9 | ＜80 | 140 | 40 | 60-160 |
| SDC-8 | 8 | 10 | 400 | 13.5 | ＜80 | 180 | 40 | 70-200 |
| SDC-10 | 10 | 12.5 | 400 | 18.1 | ＜80 | 225 | 40 | 80-280 |
| SDC-12 | 12 | 15 | 400 | 21.7 | ＜80 | 280 | 40 | 100-300 |
| SDC-15 | 15 | 18.75 | 400 | 27.1 | ＜80 | 300 | 40 | 100-350 |
