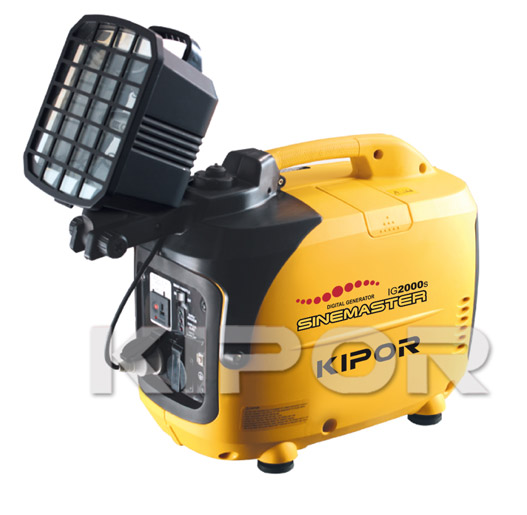

IG2000s
Description
Features and benefits:
* All the benefits of IG2000 remained.
* A spotlight provides the users backup illumination.
Spotlight data:
* 110V/230V,500W.
* lodine tungsten filament.
* 210 rotation degrees.
| Rated frequency (Hz) | 50 60 |
|---|---|
| Rated voltage(V) | 230 120/240 |
| Rated current (A) | 7 13.3/6.7 |
| Rated speed(r/min) | 4500 |
| Rated output (kVA) | 1.6 |
| Max. output (kVA) | 2.0 |
| DC output | 12V-8.3A |
| Phase number | Single |
| Current circuit breaker | Without |
| Structural type | Portable, with spotlight |
| Fuel capacity（L） | 3.5 |
| Set fuel consumption（g/kW.h） | 500 |
| Continuous running time (hr) (rated output) | 3.5 |
| Noise level (zero load--full load) dB (A)/7m | 54-59 |
| Overall dimension(L×W×H)（mm) | 665×300×425 |
| Net weight（kg） | 24 |
| Starting system | Recoil starter |
| Fuel type | Automotive unlead gasoline |
| Lube oil type | CD grade or SAE10W30, 15W40 |
| Engine model | KG158 |
| Engine type | Single cylinder, 4-stroke, OHC, gasoline engine |
| Bore×Stroke | 58×40 |
| Displacement(ml) | 105.6 |
| Compression ratio | 8.5 |
| Rated power[kW(Hp)/(r/min) | 2.2/4500 |
| Ignition system | T.C.I |
| Spark plug | A7RTC/UR5 |
| Lowest fuel consumption（g/kW.h） | 420 |
