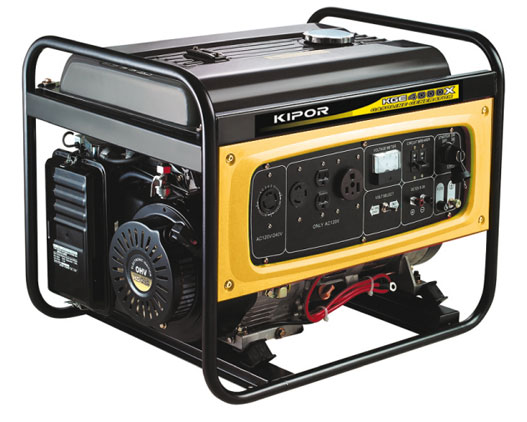

KGE6500X/KGE6500E
Description
Features and benefits:
* Legendary KG390 4-stroke engine.
* A new AVR(Automatic Voltage Regulator)delivers non-fluctuating power.
* Low oil pressure alert system shuts down the engine automatically.
* Dual frequency and voltage AC output.
| Rated frequency (Hz) | 50 60 | |
|---|---|---|
| Rated output(kVA) | 5.0 5.5 | |
| Max. ouput (kVA) | 5.5 6.5 | |
| Rated voltage (V) | 115/230 120/240 | |
| Rated current (A) | 43.5/21.7 45.8/22.9 | |
| Rated speed (r/min ) | 3000 3600 | |
| Phase NO. | Single phase | |
| Power factor （cosφ） | 1.0 | |
| Insulation grade | B | |
| Pole number | 2 | |
| Excitation mode | Self-Excitation and constant voltage(AVR) | |
| panel type | General panel | |
| Output | Volage (V) | 115/230 120/240 |
| Receptacle | Two receptacles | |
| Connection pole | Without | |
| DC12V output | Connection pole output | |
| Overall dimension:L×W×H(mm) | X:680×510×540 E:855×510×540(with battery) | |
| Dry weight (Kg) | X:83 E:90 | |
| Working assorting weight(Kg) | X:108 E:115 | |
| Noise Level(7M) db(A) | 74 | |
| Structure type | Open frame | |
| Engine Model | KG390 | |
| Engine type | Single-cyinder,four-stroke,OHV,air-cooled | |
| Cylinder NO,-bore×stroke(mm) | 1-88×64 | |
| Displacement | 389 | |
| Rated power[kW(Hp)/(r/min)] | 7.0/3000 7.7/3600 | |
| Compression ratio | 8.5:1 | |
| Rated rotation speed | 3000 3600 | |
| lgnition system | T.C.I | |
| Cooling system | Air cooled | |
| Lubrication system | Splash | |
| Starting system | X:Recoil starter E:Electric starter | |
| Fuel type | Automotive unleaded gasoline | |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 | |
| Capacity of cooling Water(L) | Without | |
| Lube capacity (L) | 1.1 | |
| Starting motor capacity (V-kW) | 12V 0.4kW | |
| Charging generator capacity (V-A) | 12V 8A | |
| Battery capacity(V-Ah) | 12V 36Ah | |
| Fuel consumption (g/kW·h) | ≤374 | |
| Fuel tank capacity (L) | 30 | |
| Continuous running time (hr) | 12 | |
