JET80
Product Describe
Pump casing、cover and impeller of BLC series stainless steel centrifugal pump use SUS304 stainless steel, high quality mechanical seal, aluminium-alloy motor casing, optimizing design, light in weight and nice looking, high efficiency, high pressure、rustless, long life, resist corrosion and so on. The pump are suitable for transporting pure water (which is conformity with health standard),clean water, sea water, low corrosive liquid with temperature less than 60℃. Motor: 2-pole induction motor, Three-phase 380V/50Hz, Single-phase 220V/50Hz or 115V/60Hz, Single-phase with thermal protector, Insulation class B or F, Protection IP54, Continuous duty.

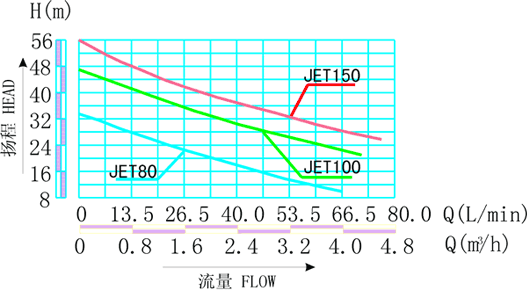

Diagram Of Curve

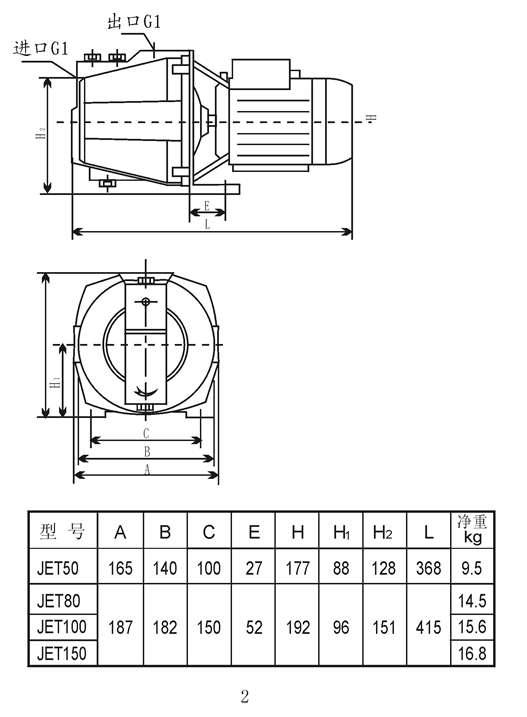

Diagram Of Installation
