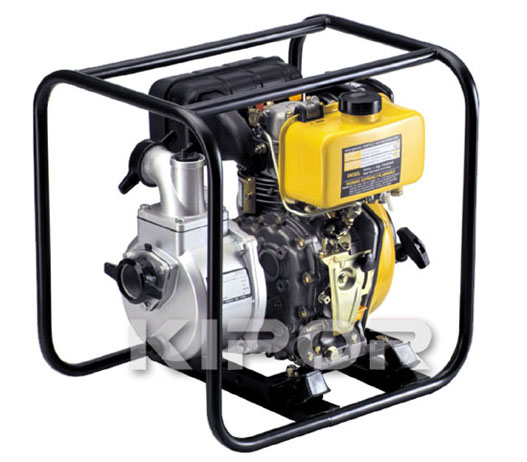

KDP30
Description
* Powered by 4-stroke engine.
* Full frame protection offers exceptional performance even in the toughest conditions.
* Easy maintenance.
* Meets a wide range of applications.
| Suction & discharge port diameter (mm) (in) | 80(3'') |
|---|---|
| Rated capacity (m3/h) | 30 |
| Max. capacity (m3/h) | 55 |
| Rated total head (m) | 13 |
| Max. total head (m) | 25 |
| Self-priming time (s/4m) | 120 |
| Max. suction head (m) | 8 |
| Rotation speed (r/min ) | 3600 |
| Fuel consumption (g/kWh) | 441 |
| Noise level(dB(A)/7m) | 76 |
| Overall dimension (mm)(L×W×H) | 570×445×550 |
| Net weight (kg) | 52 |
| Engine model | KM178 |
| Rated power (kW) | 4 |
| Rated speed (r/min) | 3600 |
| Displacement (cm3) | 296 |
| Starter system | Recoil starter |
