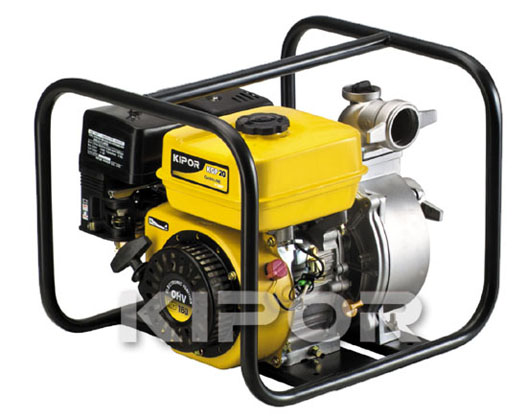

KGP20
Description
* Powered by 4-stroke engine.
* Full frame protection offers exceptional performance even in the toughest conditions.
* Easy maintenance.
* Meets a wide range of applications*Powered by 4-stroke engine.
* Full frame protection offers exceptional performance even in the toughest conditions.
* Easy maintenance.
* Meets a wide range of applications.
| Suction & discharge port diameter (mm) (in) | 50(2'') |
|---|---|
| Rated capacity (m3/h) | 22 |
| Max. capacity (m3/h) | 36 |
| Rated total head (m) | 15 |
| Max. total head (m) | 26 |
| Self-priming time (s/4m) | 80 |
| Max. suction head (m) | 8 |
| Rotation speed (r/min ) | 3600 |
| Fuel consumption (g/kWh) | 1200 |
| Noise level(dB(A)/7m) | 74 |
| Overall dimension (mm)(L×W×H) | 480×430×400 |
| Net weight (kg) | 26 |
| Engine model | KG160 |
| Rated power (kW) | 3.3 |
| Rated speed (r/min) | 3600 |
| Displacement (cm3) | 163 |
| Starter system | Recoil starter |
