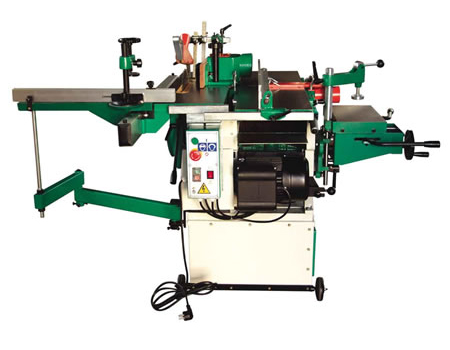

ML392FⅢ
Multi_use Woodworking Machine
product category: MULTI-USE WOODWORKING MACHINES
product type: ML392FⅢ·TGI
introduction:
1.1 Surface planer
◆Arbor dia.: Φ72mm
◆Arbor speed: 4000r/min
◆Max.planning width: 250mm
◆Max.removal: 3mm
1.2 Thickness planer
◆Max.planning width: 250mm
◆Range of thickness: 6-120mm
◆Feeding speed: 6.5m/min
1.3 Round saw
◆Blade dia.: Φ250mm
◆Max. cutting thickness: 70mm
◆Arbor speed: 3500r/min
◆Max. crosscutting width: 300mm
1.4 Milling
◆Milling tool dia.: Φ72×40×Φ20mm
◆Arbor speed: 8100r/min
◆Arbor height: (Φ20 spindle)40mm (Φ30 spindle)80mm
◆Milling height: 40mm
◆Max. removal: 8mm
◆Motor: 1200W 200V 50Hz
1.5 Drilling
◆Max. aperfure: Φ12mm
◆Max. drilling depth: 90mm
1.6 Other
◆Motor power1.5kW or 2.2kW;1.2kW
◆N.W./G.W.: 210/245kg
◆Packing size: 113×80×70cm
